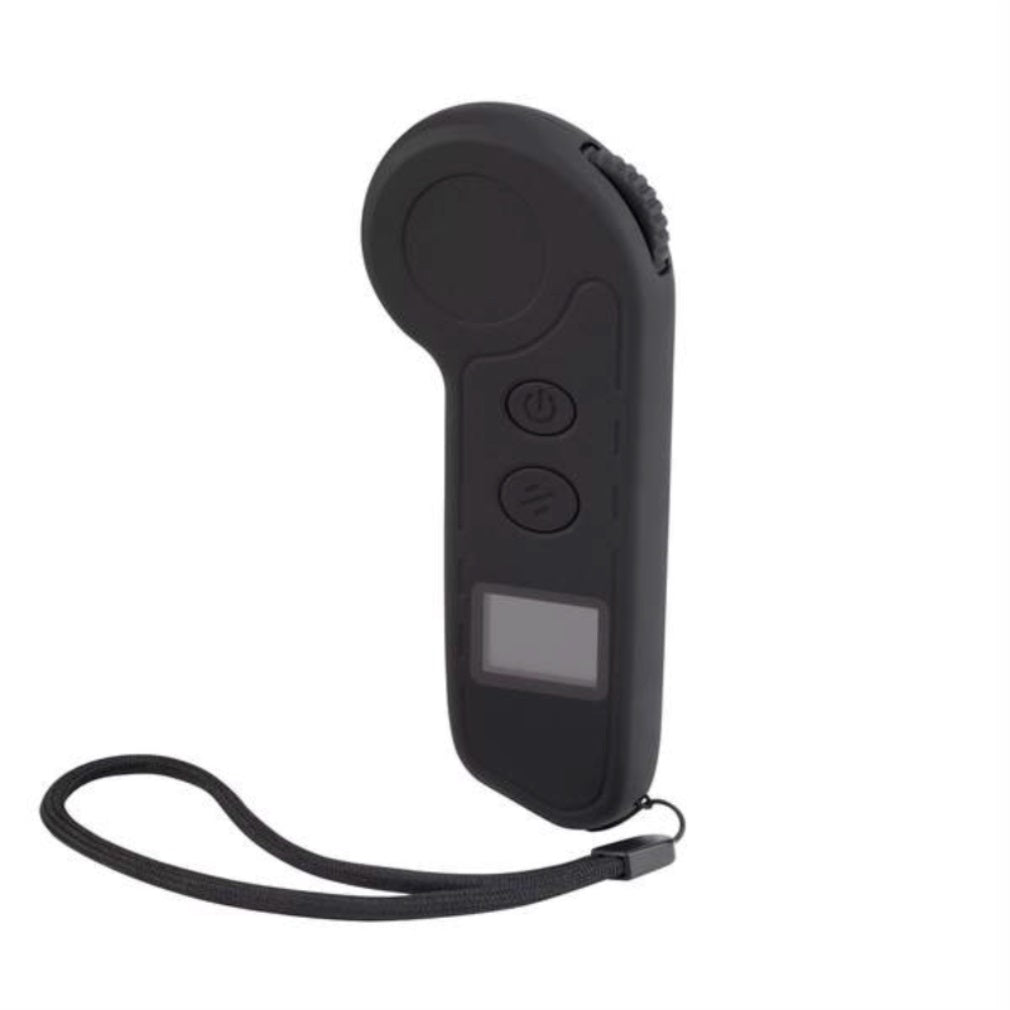

Hobbywing Remote with LED Display

Hobbywing Remote with LED Display could pair with hobbywing ESC 9005/9028mode

How to pair the remote:

1, Long press the switch button on the board for around 5 seconds,till the lights get red and fast flash

2, Long press the switch button on the remote for around 5 seconds, till the remote display shows 'remote paired ok' and get into the setup mode.

Then it will get into the setting mode

3, And rolling the throttle to choose the correct option,one press the switch button(confirm) to get into next option.

 The option is board type (choose 9005 or 9028 base on your ESC), speed,mileage unit, motor type,wheel diameter,drive ratio,motor pole ratio.

 About the drive ratio and the motor pole ratio, it is different for different wheels

4,Finish the setup , then all is done!
